FP6120 Frame

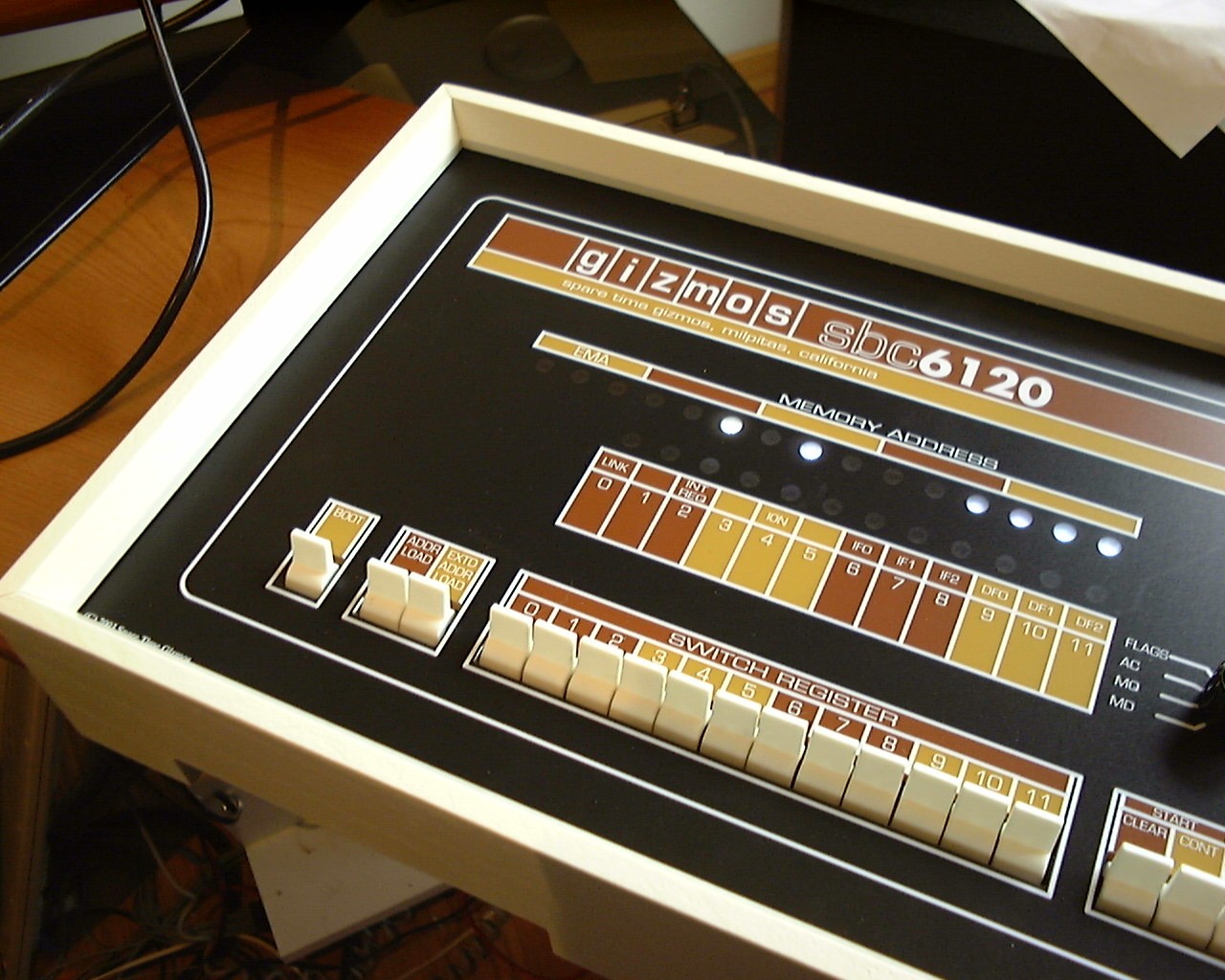

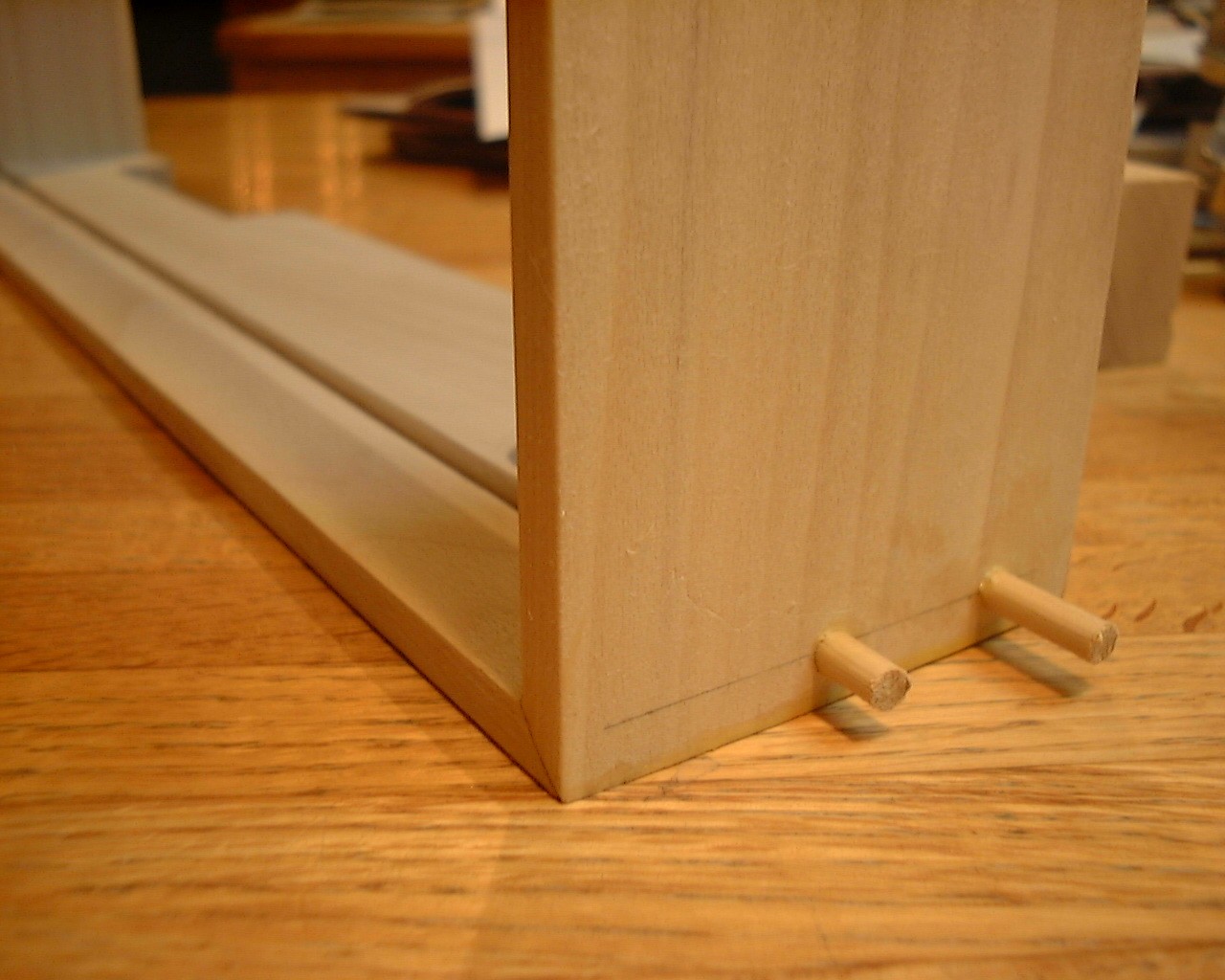

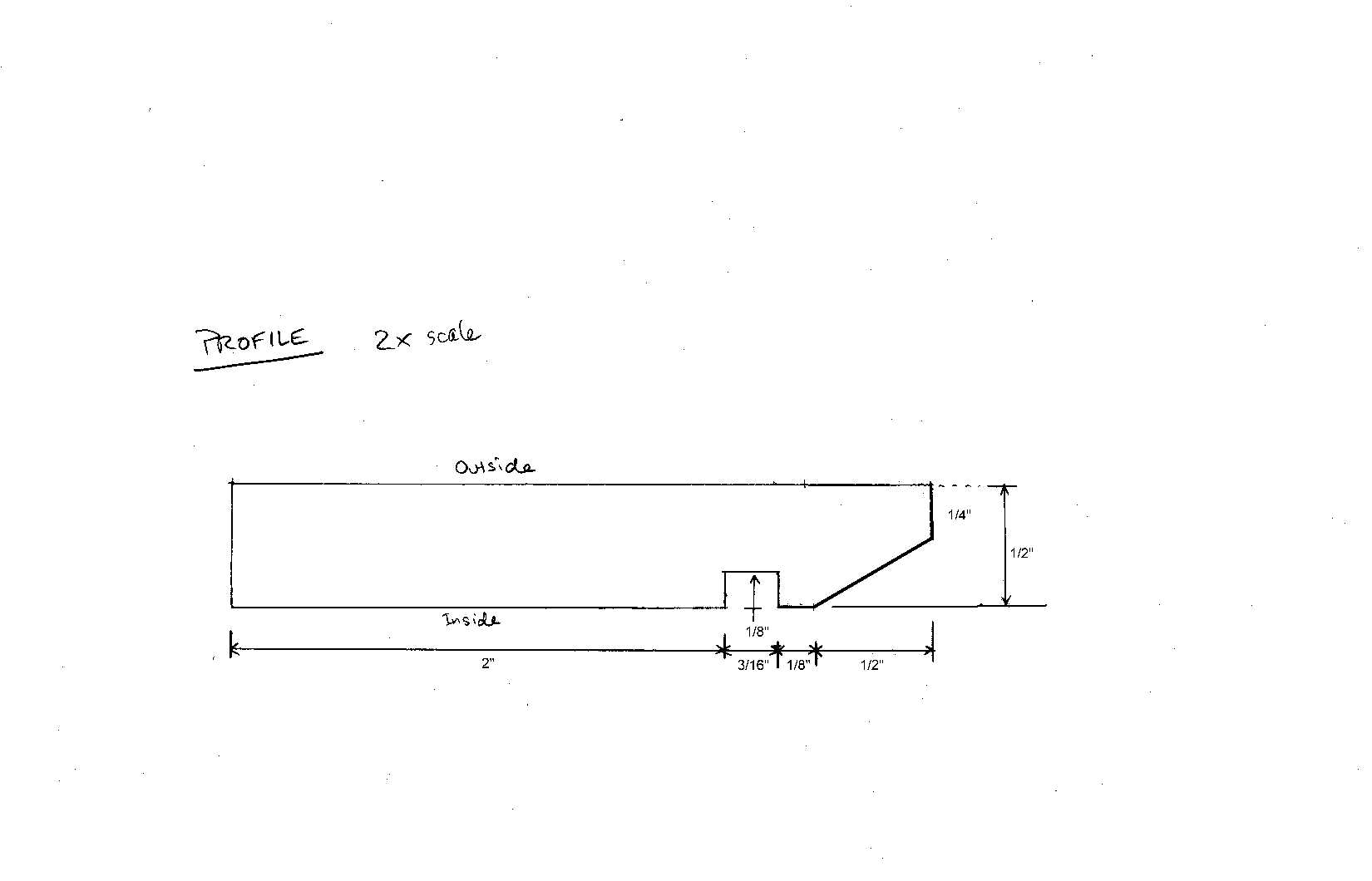

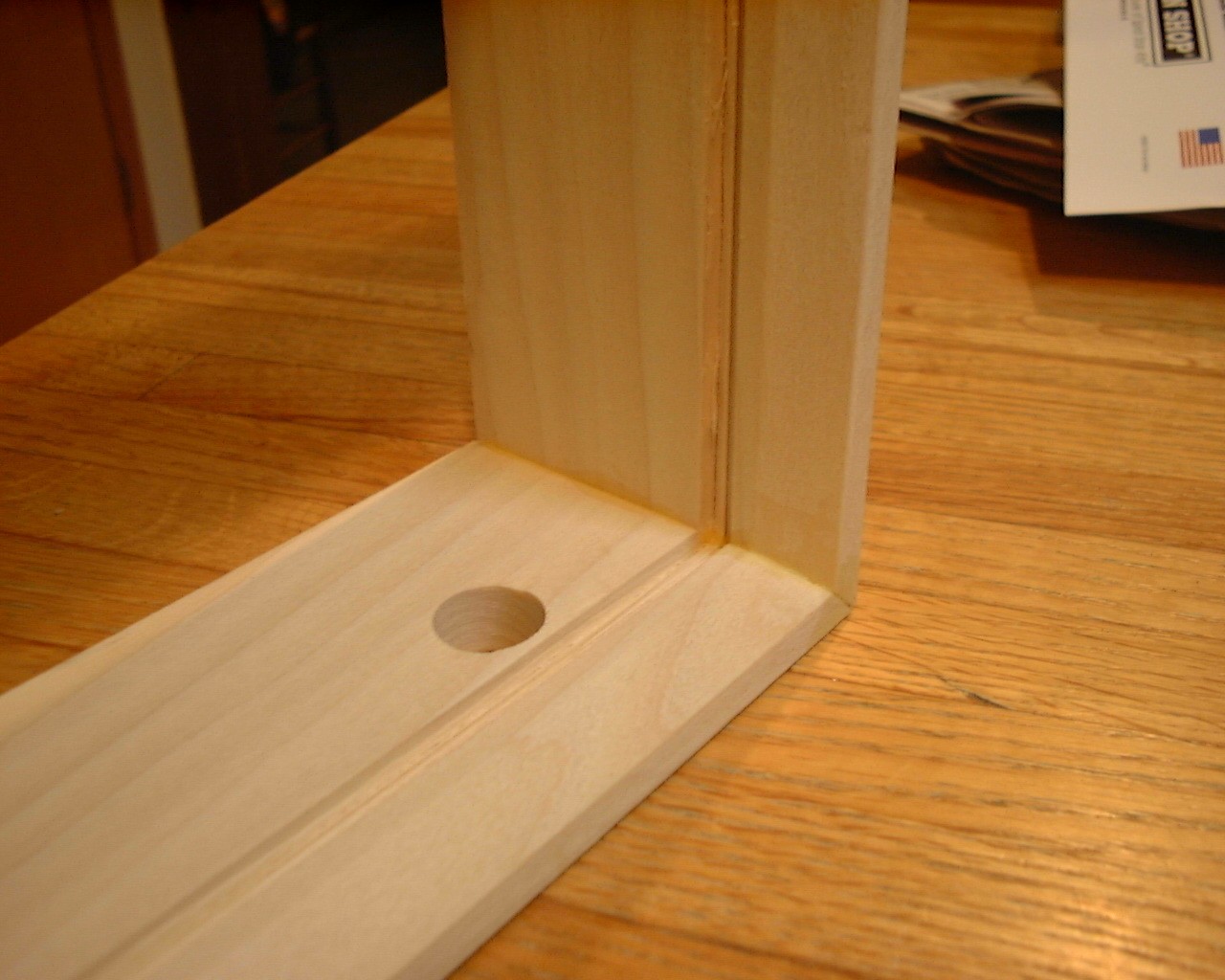

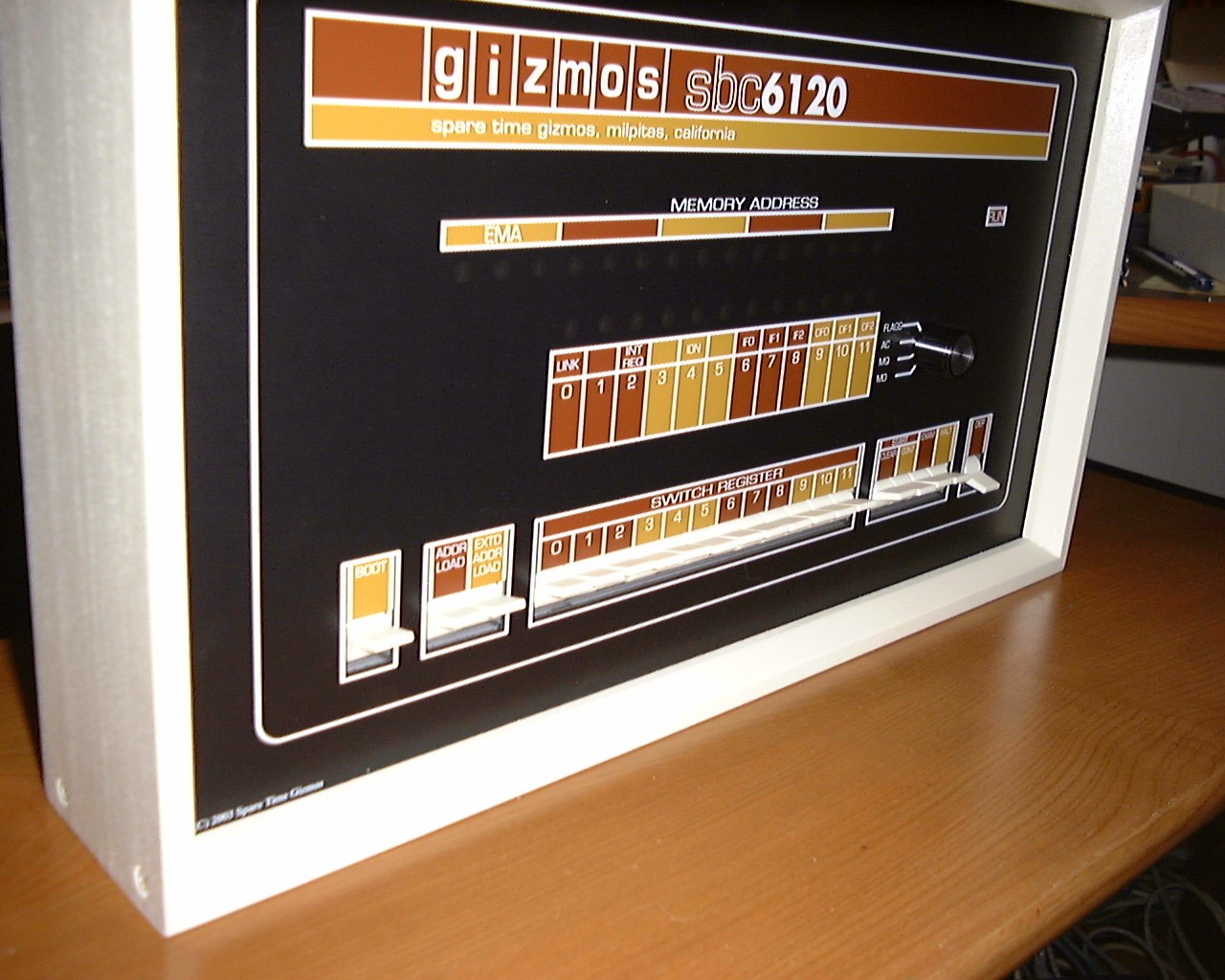

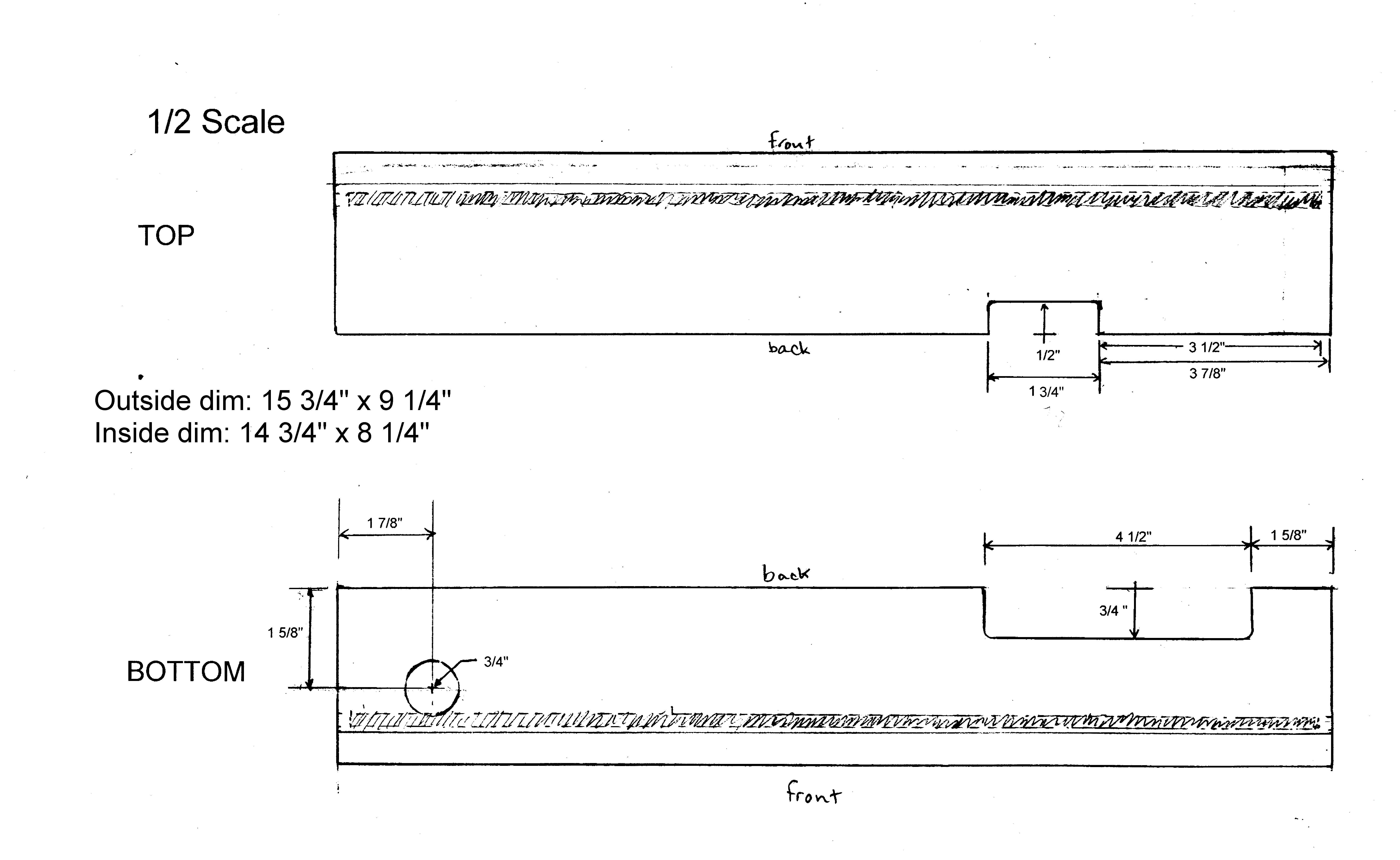

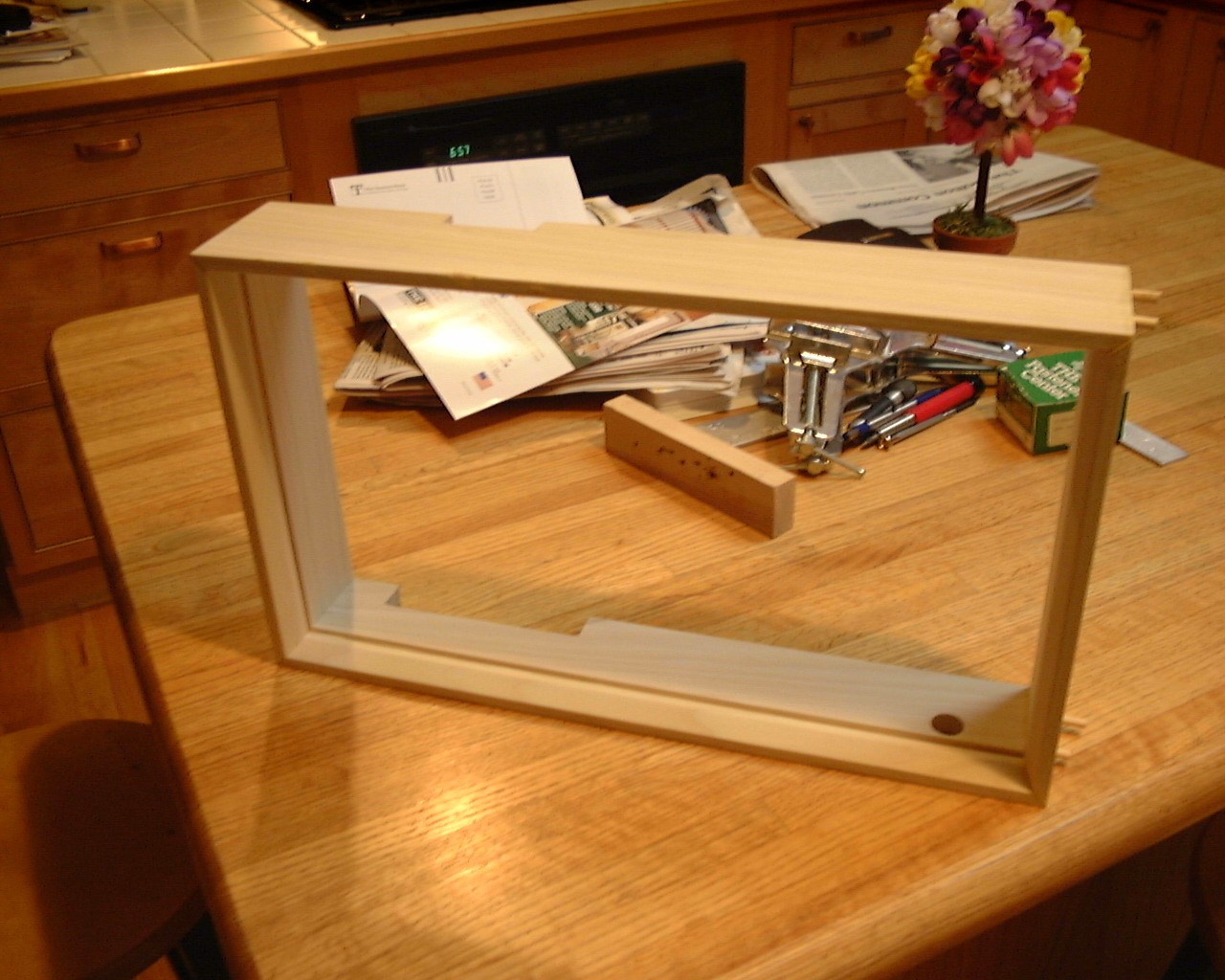

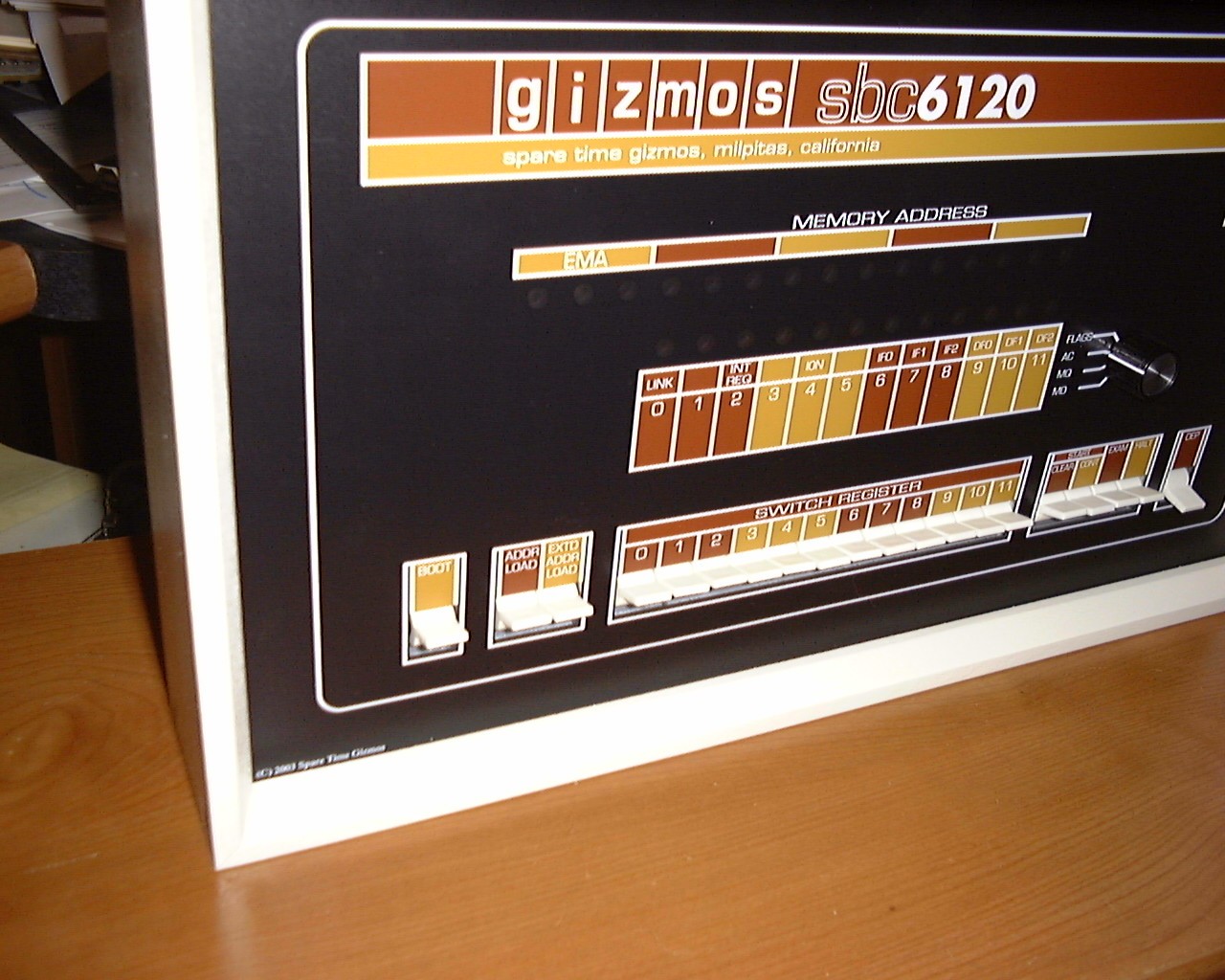

I tried to build a frame that would look similar to the bezel that DEC used on the PDP-8/e, f and m.  Essentially, it's a 'shadow box' frame made with a profile similar to the one DEC used, deep enough to hold an FP6120 with an SBC6120, IOB6120 and hard drive mounted.  I drew out a pattern and had the local millwork shop run me some moulding, at around $4 a foot.  The four sides are joined with miter joints, two of them permanently fixed with glue and dowels and the other two with countersunk screws.  I used a jigsaw to make cut-outs for the IOB6120 ports, CompactFlash card and drilled a hole for the power cord.  The whole thing was then painted an off-white, kind of light putty color.

Sorry for the blurriness of the photos - no tripod was handy.

dsc00106.jpg 243.5 KB	dsc00107.jpg 207.3 KB	dsc00108.jpg 209.0 KB	dsc00112.jpg 247.8 KB
dsc00109.jpg 270.6 KB	dsc00110.jpg 264.2 KB	dsc00111.jpg 259.4 KB
